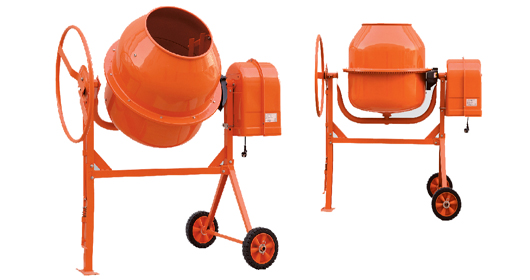

HCMS 130L-200L Concrete Mixer
A popular design on the market
Its attractive character:
-
Motor is well protected with steel motor cover.
-
Motor is enclosed type and casting belt pulley is matched
Product Features:
-
In accordance with European GS, CE, ROHS standards.
-
Enclosed motor matching with casting belt pulley.
-
Tipping wheel.
-
Steel motor cover.
-
Superior Impact resistance.
-
Popular model
| MODEL | HCM450S | HCM500S | HCM540S |
|---|---|---|---|
| DRUM CAPACITY | 130L | 140L | 150L |
| POWER | 550W | 550W | 550W |
| DRUM DIAMETER | 570mm | 570mm | 570mm |
| DRUM MOUTH | 380mm | 380mm | 380mm |
| DRUM HEIGHT | 570mm | 610mm | 660mm |
| DRUM THICKNESS | 1.0mm/1.6mm | 1.0mm/1.6mm | 1.0mm/1.6mm |
| COGWHEEL TYPE | cast iron | cast iron | cast iron |
| OVERALL DIMENTION | 1200¡Á710¡Á1350mm | 1200¡Á710¡Á1350mm | 1200¡Á710¡Á1410mm |
| N.W | 52Kg | 53Kg | 54Kg |
| G.W | 56Kg | 57Kg | 58Kg |
| 20GP | 120PCS | 120PCS | 120PCS |
| 40GP | 255PCS | 255PCS | 255PCS |
| 40HC | 306PCS | 255PCS | 255PCS |

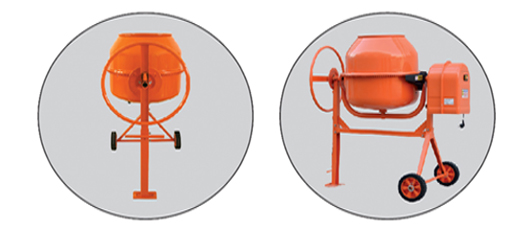

With pedal tipping wheel, work becomes so easy.
Heavy-duty cast iron ring gear ensures long life span.
Product Features:
-
In accordance with European GS, CE, ROHS standards.
-
Steel motor cover.
-
Enclosed motor, matching with casting belt pulley.
-
Superior impact resistance.
-
Pedal tipping wheel.
-
Heavy-duty cast iron ring gear.
| MODEL | HCM550S | HCM650S | HCM700S |
|---|---|---|---|
| DRUM CAPACITY | 160L | 180L | 200L |
| POWER | 650W | 700W | 800W |
| DRUM DIAMETER | 630mm | 630mm | 630mm |
| DRUM MOUTH | 390mm | 390mm | 390mm |
| DRUM HEIGHT | 630mm | 680mm | 720mm |
| DRUM THICKNESS | 1.1mm/1.6mm | 1.1mm/1.6mm | 1.2mm/1.75mm |
| COGWHEEL TYPE | cast iron | cast iron | cast iron |
| TIPPING TYPE(HAND WHEEL OR PEDAL) | 10¡ã | 10¡ã | 10¡ã |
| OVERALL DIMENTION | 1200¡Á710¡Á1370mm | 1260¡Á850¡Á1400mm | 1260¡Á850¡Á1420mm |
| N.W | 72Kg | 74Kg | 76Kg |
| G.W | 76Kg | 78Kg | 80Kg |
| 20GP | 84PCS | 84PCS | 84PCS |
| 40GP | 180PCS | 180PCS | 180PCS |
| 40HC | 225PCS | 225PCS | 225PCS |
